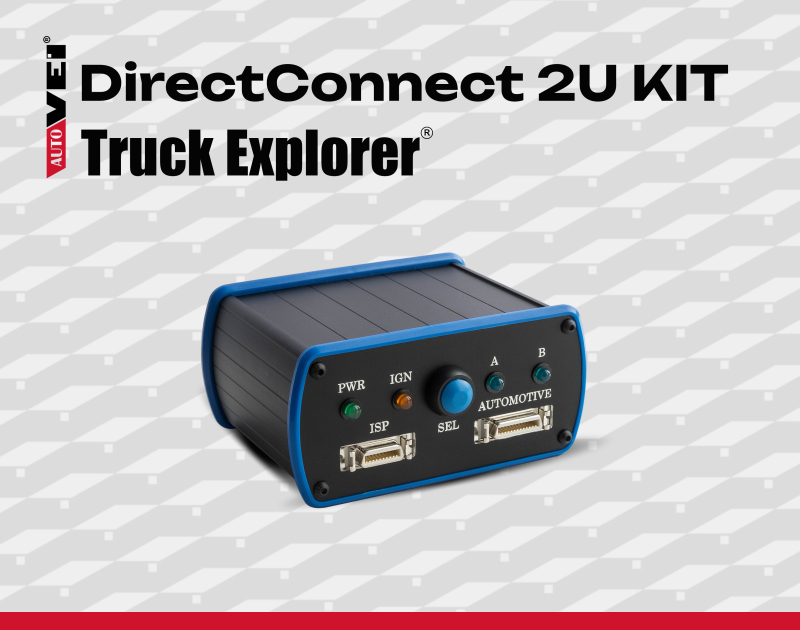

AUTOVEI DirectConnect 2U kit
Το Autovei DirectConnect 2U Tool (DC2U) είναι ένα εργαλείο για προγραμματισμό διαφόρων μονάδων ελέγχου οχημάτων χωρίς να απαιτείται το πλήρες σύστημα του οχήματος.
Λειτουργίες και Δυνατότητες:
- ISP (In-System Programming) για ανάγνωση και εγγραφή άγνωστου ή κατεστραμμένου λογισμικού από μονάδες ελέγχου οχημάτων.
- Υποστηρίζει λειτουργίες σε BSL mode, TriCore BL mode, Motorola BKG mode, NEC serial BL.
- Υποστηριζόμενα πρωτόκολλα: J1708, BSL UART, SPI (SCI), MBench.
Σημαντικές Σημειώσεις:
- Το DirectConnect 2U εργαλείο δεν λειτουργεί χωρίς τη συσκευή VEI V6/V7.
- Σχεδιασμένο για χρήση σε θερμοκρασία δωματίου άνω των +5°C.
Το κιτ AUTOVEI DirectConnect 2U περιλαμβάνει:
| Νούμερο | Κωδικός | Περιλαμβάνει στο DC2U kit |
| 1 | D185101084 |
DirectConnect 2U box
|
| 2 | D205116001 |
DC2U-PLD cable 0.30m
|
| 3 | D225101004 |
DC2U-ISP2 cable for BSL mode
|
| 4 | D165120003 |
DC2U-OBD2-Power cable
|
| 5 | D2051S8001 | License DC2 |
Επιπλέον Καλώδια:
|
D151201001
|
 |
USB A-B cable
|
|
D151120064
|
 |
OBD2F-4-MB14 adapter
|
|
D141120012
|
 |
OBD2F-4-MN12 adapter
|
|
D205141004
|
 |
OBD2F-4-IVECO30 adapter
|
|
D205116001
|
 |
DC2-PLD cable 0.3m
|
|
D225101004
|
 |
DC2-ISP2 cable
|
|
D165120003
|
 |
DC2-OBD2Power cable
|
|
D195121005
|
 |
DC2-FR+CPC+CPC4 cable
|
|
D235121006
|
 |
DC2U-UCV-FR cable
|
|
D195111004
|
 |
DC2-ADM3 cable
|
|
D195116004
|
 |
DC2-EHZ cable
|
|
D225111012
|
 |
DC2U-EBS34-MB-Wabco cable
|
|
D225111014
|
 |
DC2U-EBS5-MB-Knorr cable
|
|
D225132007
|
 |
DC2U-EBS5-MAN-Knorr cable
|
|
D225111013
|
 |
DC2U-EBS3-KAMAZ cable
|
|
D225116005
|
 |
DC2U-CR4 GPT cable
|
|
D225116006
|
 |
DC2U-CR60 GPT cable
|
|
D205112001
|
 |
DC2-VGS cable
|
|
D195116003
|
 |
DC2-PLD cable 1.5m
|
|
D235111017
|
 |
DC2U-CPC3 cable
|
|
D225100020
|
 |
DC2U-ISP-JTAG+BDM dongle
|
|
D205100024
|
 |
DC2U-JTAG8 open flex (for dongle)
|
|
D205100023
|
 |
DC2U-BDM7 open flex cable (for dongle)
|
|
D205100025
|
 |
DC2U-BDM10 to MHD10 cable (for dongle)
|
|
D205111003
|
 |
DC2U-ISP7 cable
|
|
D165111003
|
 |
DC2-MCM+ACM cable 0.3m
|
|
D195111003
|
 |
DC2-MCM+ACM 2m
|
|
D215111009
|
 |
DC2-TCM cable 2m
|
|
D235102005
|
 |
IRRF tool
|
|
D185102005
|
 |
IRRF tool ISP cable
|
|
D195102003
|
 |
DC2-TransReader13
|
|
D195111011
|
 |
DC2-GS2 cable 2m
|
|
D175101010
|
 |
DC2-GS2 ISP6 cable
|
|
D2251K1002
|
 |
DC2-EIS cables set
|
|
D195141001
|
 |
DC2-VCM3/VCM3 cable
|
|
D195141003
|
 |
DC2-VCM2 ISP5 cable
|
|
D195141002
|
 |
DC2-VCM3 ISP4 cable
|
|
D235142006
|
 |
DC2U-IVECO INS cable
|
|
D215142005
|
 |
DC2U-EDC7UC31 GPT cable 2m
|
|
D245142008
|
 |
DC2U-EDC7C49 GPT cable 2m
|
|
D215132005
|
 |
DC2U-EDC7C32 GPT cable 2m
|
|
D215142007
|
 |
DC2U-EDC17CV41 GPT cable 2m for IVECO
|
|
D215132016
|
 |
DC2U-EDC17CV42 GPT cable 2m for MAN
|
|
D235132019
|
 |
DC2U-MD1CE100 cable
|
|
D235112001
|
 |
DC2U-GS3 cable
|
|
D195131002
|
 |
DC2-FFR cable
|
|
D195132005
|
 |
DC2-PTM cable
|
|
D235132017
|
 |
DC2U-EDC17+PTM cable
|
|
D215132006
|
 |
DC2-PTM+FFR+EDC7 cable
|
|
D215152001
|
 |
DC2U-COO7 cable
|
|
D235152003
|
 |
DC2U-EMS-S6 cable
|
|
D245152005
|
 |
DC2U-COO8 cable
|
|
D225151001
|
 |
DC2U-OPC5 cable
|
|
D235152004
|
 |
DC2U-EMS S7/8 cable
|
|
D235152002
|
 |
DC2U-EEC3 cable
|
|
D235115002
|
 |
DC2U-EMS234 cable for VOLVO
|
|
D245142008
|
 |
DC2U-EDC17CV44/54 cable
|
|
D205112006
|
 |
Power cable extension 3m for DC2
|
|
D205188003
|
 |
VEI Self Test cable
|
