Διαγνωστικό μηχανών θαλάσσης – σκαφών D800 Configure C (inboard)

2.700,00 (+ΦΠΑ)

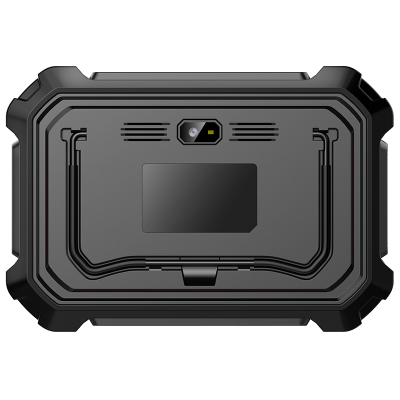

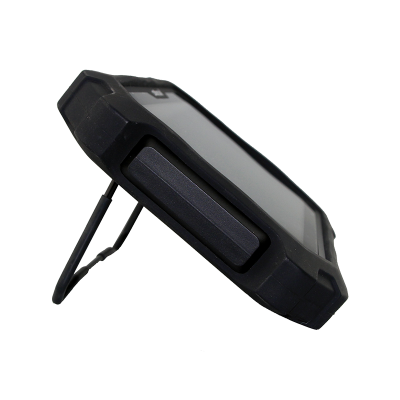

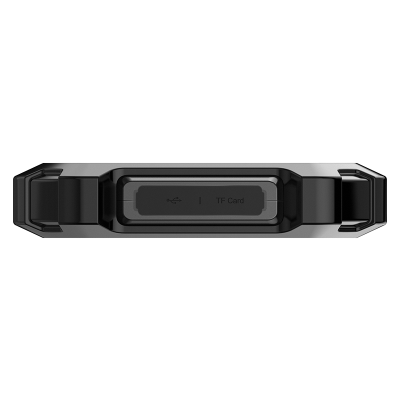

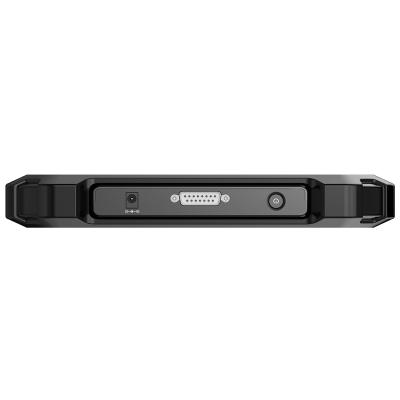

D800 Configure C (inboard) is OBDSTAR’s new generation device for marine inboard intelligent diagnosis.

Based on Samsung Exynos processor, it is equipped with an 8-inch display screen, which is extremely fast and smooth.

D800 adopts the latest 3.0 APK platform and has shortcut functions such as auto-identification, intelligent retrieval, and one-click feedback. The D800 marine scanner, with its fast upgrade performance and built-in help materials, is a good helper for marine maintenance engineers!

Functions

1. New android operation system;

2. Simple and intuitive menu guidance allows you to quickly master the equipment operation;

3. Provide complete diagnostic functions including ECU information, code reading, code clearing, data flow, freeze frames, action test, setting, coding, read working hours etc;

4. Record and play back real-time flow, quickly and accurately locate sensor and component faults;

5. Wi-Fi connection to the internet, one-click software upgrade;

6. One-click remote function, OBDSTAR technical staff remote assistance.

Advanced Function

1. The OBDSTAR mobile APP integrates functions such as diag socket location, flash code query, technical bulletin, manual service function(service lamp reset), basic parameters, etc., working with D800 to make marine diagnosis more accurately and efficiently (some functions are only available for D800 users to check for free);

2. The exclusive interactive wiring diagram and electrical appliance description query function make your diagnosis worry-free;

3. Various data flow display modes such as text, waveform diagram and instrument diagram allow you to easily analyze faults;

4. Supports Auto Scan, Active Trim Configuration, Active Trim GPS Configuration, Auxiliary Joystick Configuration, BCM Simulator, Compass Configuration, Device Initialization, Drive Alignment, Helm Setup, Instance Setting, Maintenance Setting, Merc TDS Reset, Remote Control Reset, Set Engine Location, Set Tach Link, Set Tilt Limit, SMUX Configuration, Steering Wheel Centering, System Calibration, Torque Adjustment, Trackpad Configuration, Vessel Personality and other functions.

Supported Brands

CATERPILLAR(Coming soon), CFMOTO, CRUSADER ENGINES, CUMMINS MARINE, CUMMINS MERCRUISER DIESEL, DAEDONG, DAF MARINE, EVINRUDE, FNM MARINE, FORD MARINE, FPT (Fiat Powertrain Technologies), HIDEA, HONDA, HYUNDAI SEASALL, ILMOR, INDMAR, JOHNSON, KAWASAKI, KODIAK MARINE, LOMBARDINI MARINE, MALIBU, MAN MARINE, MARINER, MARINE POWER, MERCURY/MERCURY RACING, MTU(Coming soon), PARSUN, PANTHER AIRBOATS, PCM Marine Engines, PERKINS, SCANIA MARINE, SEA-DOO(BRP), SELVA MARINE, SEVEN MARINE, SISU, STEYR MOTORS, SUZUKI, TOHATSU, TOYOTA MARINE, VM MOTORI,VOLVO PENTA, YAMAHA, YANMAR…

More functions are under development…

It has below four configurations

A: Jet ski    B: Outboard    C: Inboard    D: Generator

D800 A+B: Jet ski, Outboard

D800 C+D: Inboard, Generator

D800 A+B+C+D: Jet ski, Outboard, Inboard, Generator
